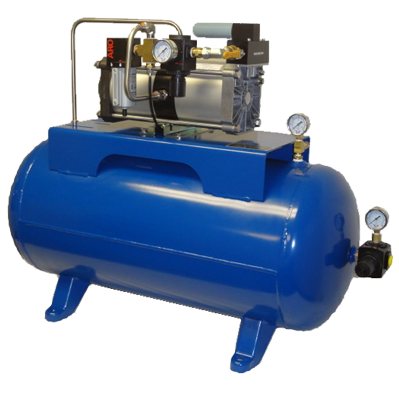

High Pressure Technologies Air Amplifier Systems are ideal for shops in which the existing air supply pressure is insufficient. HPT Air Amplifier systems are plug and play solutions for applications where plant air pressure needs to be boosted for the operation of air tools, pneumatic clamps, cylinders and other equipment or where high pressure air is required for testing purposes. These systems provide short-term high flow or constant flow with reserve, at a regulated output pressure. HPT Air Amplifier Systems utilize A.S.M.E rated and CRN (Canada) Storage tanks which come with a safety relief valve, drain valve and pressure gauge. Each air amplifier system is also equipped with an inlet air filter, inlet air regulator, inlet on/off speed control valve and outlet pressure regulator with gauge, relief valve. HPT Air Amplifier Systems come standard with either 200, 250, or 500 psi tanks. Standard Tank sizes range from 1 gallon to 30 gallon. Larger tanks are available if required. Where outlet pressure exceeds 200 psi, a range of high pressure regulators are availabe sized to suit the pressure and flow required.
For applications requiring the air pressure to be increased up to twice the existing pressure, a 2:1 ratio air amplifier system is ideal. Using the same compressed air to power the amplifier, pressures as high as 300 psi can be achieved. Single and Double acting air amplifier systems are available depending on your applications flow rates requirements.
Request for Quote Know More
High Pressure Technologies 2:1 Ratio Air Amplifier Systems are designed to boost plant air pressure or increase the supply air pressure at work stations and pneumatically operated machinery when the availabe working pressure is insufficient.
Request for Quote Know MoreTechnical Data System Catalog Number AS-2GPLV2-15GH Air Amplifier Type (2)GPLV2 Tank Size (Gal.) 15 System Rating (PSI) 200 Inlet (FNPT) Connections (2)1/2 Outlet (FNPT) Connections 1/2 Stroke Capacity(inˆ3) 116 Overall Size (in.) 39L X 18W X 26H Weight (lbs.) 165 Mounting Dimensions (in.) 11.00 X 20.00 X 0.44 GPLV2 Flowchart
Request for Quote Know MoreMaximator® AS-DLA5-15G-R Air Amplifier Systems are ideal for turn-key installation at work stations or machine centers to boost plant air pressure for tools or operation of pneumatic clamps, cylinders and other equipment. These systems provide short-term high flow air or constant flow with reserve, at a constant regulated output pressure. Storage tank is per A.S.M.E. Code ...
Request for Quote Know MoreMaximator® AS-DLA5-15GH-200 Air Amplifier Systems are ideal for turn-key installation at work stations or machine centers to boost plant air pressure for tools or operation of pneumatic clamps, cylinders and other equipment. These systems provide short-term high flow air or constant flow with reserve, at a constant regulated output pressure. Storage tank is per A.S.M.E. ...
Request for Quote Know MoreMaximator® AS-DLA5-30GH-200 Air Amplifier Systems are ideal for turn-key installation at work stations or machine centers to boost plant air pressure for tools or operation of pneumatic clamps, cylinders and other equipment. These systems provide short-term high flow air or constant flow with reserve, at a constant regulated output pressure. Storage tank is per A.S.M.E. Code ...
Request for Quote Know More

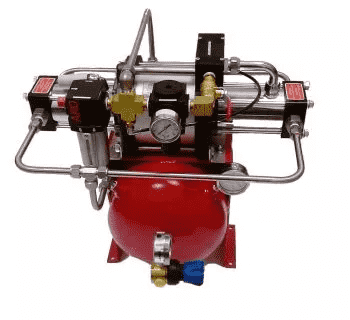

Maximator® AS-DLA5-4G Air Amplifier Systems are ideal for turn-key installation at work stations or machine centers to boost plant air pressure for tools or operation of pneumatic clamps, cylinders and other equipment. These systems provide short-term high flow air or constant flow with reserve, at a constant regulated output pressure. Storage tank is per A.S.M.E. ...
Request for Quote Know MoreMaximator® AS-GPLV2-15G Air Amplifier Systems are ideal for turn-key installation at work stations or machine centers to boost plant air pressure for tools or operation of pneumatic clamps, cylinders and other equipment. These systems provide short-term high flow air or constant flow with reserve, at a constant regulated output pressure. Storage tank is per A.S.M.E. ...
Request for Quote Know MoreMaximator® AS-GPLV2-30G Air Amplifier Systems are ideal for turn-key installation at work stations or machine centers to boost plant air pressure for tools or operation of pneumatic clamps, cylinders and other equipment. These systems provide short-term high flow air or constant flow with reserve, at a constant regulated output pressure. Storage tank is per A.S.M.E. ...
