AS-DLA5-15GH-200 Air Amplifier System

Maximator® AS-DLA5-15GH-200 Air Amplifier Systems are ideal for turn-key installation at work stations or machine centers to boost plant air pressure for tools or operation of pneumatic clamps, cylinders and other equipment. These systems provide short-term high flow air or constant flow with reserve, at a constant regulated output pressure. Storage tank is per A.S.M.E. Code and CRN (Canada) and comes with a safety relief valve, drain valve and pressure gauge. Each 200 psi and 250 psi system is also equipped with an inlet air filter and outlet pressure regulator with gauge, all mounted on a common base. The 500 psi and 600 psi systems are equipped with an inlet air filter and inlet air pressure regulator with gauge. High pressure outlet regulator with gauge is available as an option (Add “-R” for a 1/4″ FNPT regulator or “-1/2 R” for a 1/2″ FNPT high flow regulator to system catalog number). Maximator® Air Amplifier Systems are available in a number of arrangements and custom designed units are also available to suit your specific flow and pressure requirements. Please consult factory.

Technical Data

Type	Multiple Ratio Systems
Air Amplifier Type	DLA5
Tank Size	15 gal
System Rating	200 psi
Inlet Connection	1/2″ FNPT
Outlet Connection	1/2″ FNPT
Stroke Capacity(inˆ3)	45.5
Overall Size (L x W x H)	44 x 17 x 32 in
Weight	150 lb
Mounting Dimensions	12.81 x 20.00 x 0.44 in
Option Available	Air Control Unit (ACP) Filters Gauges Receiver/Tanks Strainers Valves ans fittings

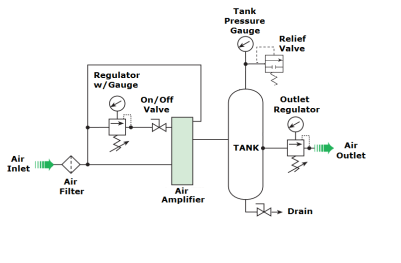

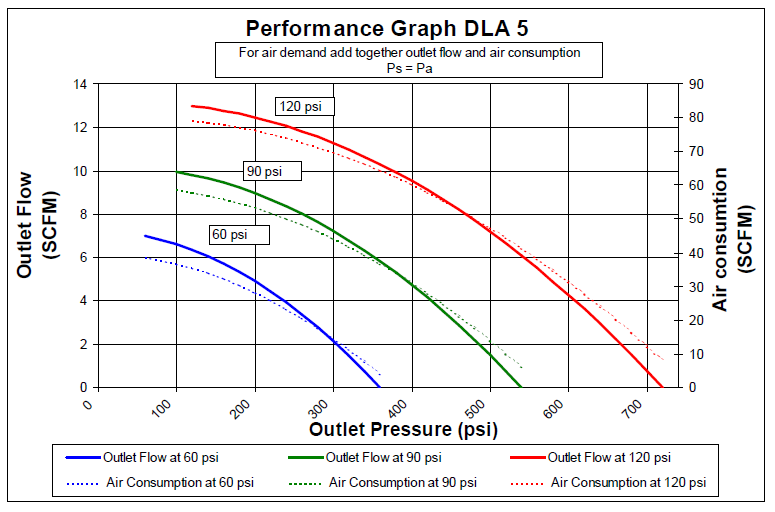

DLA5 Flowchart
