PP-Series High Pressure Pumps

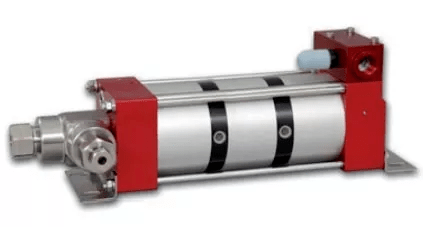

Maximator PP Series Air Driven High Pressure pumps are compact, lightweight and feature rugged construction capable to increase pressures from 60 to 58,000 psi.

They are available as single acting with either single or double air drive heads and double acting with single air drive head.

PP4 through PP12 pumps have anodized aluminum bodies and stainless steel plungers. PP22 through PP189 have stainless steel bodies and plungers. All PP pumps have polyurethane seals with Buna “N” O-rings.
All PP series pumps are standard with a bottom inlet. For a side inlet, add – S to the catalog number.
Maximum air drive pressure is 145 psi. These pumps require less drive pressure because the pumps are air driven in both directions with no spring under the piston. This design reduces noise and provides less chance of cavitation.
Minimum air drive pressure 15 psi.
For air control option … add – ACM to catalog number.
PP111 and PP189 pumps are available with a double air drive head. This doubles the effective pressure ratio of the pump providing higher pressure capabilities, or using less air pressure to achieve a given outlet pressure. Add -2 to the catalog number.
The PP22 through PP189 are available with a hand lever …add – HL to the catalog number. With the hand lever option,the pump can be operated manually or with air.

CATALOG
NUMBER

PRESSURE
RATIO

MAXIMUM OUTLET
PRESSURE
(PSI)

DISPL . PER CYCLE (IN.3)

CONNECTIONS

WEIGHT (LBS)

INLET

OUTLET

PP4 1:4 580 1.86 1 1/2 7

PP8 1:9 1,305 0.90 3/4 1/2 7

PP12 1:14 2,030 0.57 3/4 1/2 7

PP22 1:28 4,060 0.28 3/8 1/4 7

PP37 1:46 6,670 0.17 3/8 1/4 7

PP72 1:86 12,470 0.09 3/8 1/4 7

PP111 1:130 15,000 0.06 3/8 1/4 7

PP189 1:220 31,900 0.04 3/8 9/16-18 7

CATALOG
NUMBER

PRESSURE
RATIO

MAXIMUM OUTLET
PRESSURE
(PSI)

DISPL . PER CYCLE (IN.3)

CONNECTIONS

WEIGHT (LBS)

INLET

OUTLET

PP111-2 1:260 36,250 0.06 3/8 9/16-18 9

PP189-2 1:440 58,000 0.04 3/8 9/16-18 9

NOTE: Air drive inlet connection on all PP pumps is 1/4″ FNPT.
All connections listed are FNPT unless otherwise noted.
The 9 /16″ –18 is a 1/4″ O.D. tubing, high pressure coned and threaded connection.
Maximum allowable oil/water temperature is 140°F.
Air section temperature rating: 0°F to 140°F.

CATALOG
NUMBER

SAMPLE
AIR DRIVE PRESSURE
(PSI)

OUTLET PRESSURE (PSI) Above 35,000 psi for intermittent duty only

0

500

1500

3000

5000

7500

10000

15000

25000

40000

55000

PP4

60
90
120

885
905
915

50

PP8

60
90
120

422
430
433

50
240
325

PP12

60
90
120

272
275
280

160
218
245

53

PP22

60
90
120

132
136
138

110
126
132

22
82
105

30

PP37

60
90
120

81
83
85

74
80
82

47
68
75

37
56

15

PP72

60
90
120

43
44
45

42
43
45

37
41
43

22
36
39

3
24
33

3
21

4

PP111

60
90
120

28
29
30

27
28
29

26
27
28

20
26
27

12
22
25

2
16
21

8
16

3

PP189

60
90
120

17
17
17

15
17
17

14
17
17

13
16
16

12
15
15

9
12
14

5
11
13

6
11

4

PP111-2

60
90
120

21
21
22

20
21
22

20
20
21

20
20
21

19
19
20

16
17
19

15
16
18

9
12
16

7

PP189-2

60
90
120

12
12
13

12
12
12

12
12
12

11
12
12

11
12
12

10
11
12

10
11
12

7
10
11

1
7
9

5

1

PP111-3

60
90
120

18
19
19

18
19
19

18
19
19

17
18
19

17
18
19

15
16
17

14
16
18

10
14
17

8
13

PP189-3

60
90
120

11
11
11

11
11
11

11
11
11

10
11
11

10
11
11

10
11
11

9
10
11

9
10
11

6
8
10

5
8

5

FLOW RATES SHOWN ARE FOR 1-10 CST FLUIDS

FLOW RATE IN CUBIC INCHES PER MINUTE.

MAXIMUM AIR CONSUMPTION FOR “PP” PUMPS: 20 SCFM @ 90 PSI (WITH 0 PSI OUTLET).

MAXIMUM AIR CONSUMPTION FOR “PP-2” PUMPS: 30 SCFM @ 90 PSI (WITH 0 PSI OUTLET).
