Air Driven Liquid Pumps

Maximator high pressure liquid pumps are designed to generate a variety of pressure using oil, water, and other fluids. The liquid pumps are designed to be compact in size while providing the requisite amount of applied pressure. Their ease of installation and operation make them a reliable and cost-effective product for demanding industrial applications. The air driven liquid pumps are driven by pressures from the air or noble gases. These pumps have the capability to fulfill your specific needs, from low pressures of 580 psi to high pressures of 60,000 psi. This makes the Maximator high pressure pumps perfect for applications, which require stepped flow rates, and varied operating pressures.

High Pressure Filters Styles / Models

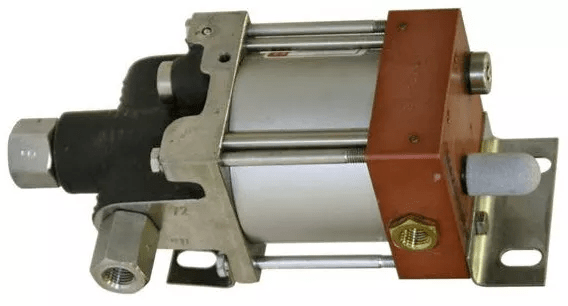

PP-Series High Pressure Pumps

The PP Series pumps are lightweight and feature a rugged construction of anodized aluminum bodies. These air driven liquid pumps are capable of increasing pressures from 60 to 58,000 psi.

Request for Quote Know More

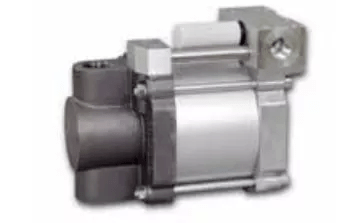

PPO Series Liquid Pumps

These pumps are specifically designed for applications comprising oil, or a combination of oil and water. The PPO pumps are known for their immense power and portability. They are also versatile, providing 8 pressure ratio options.

Request for Quote Know More

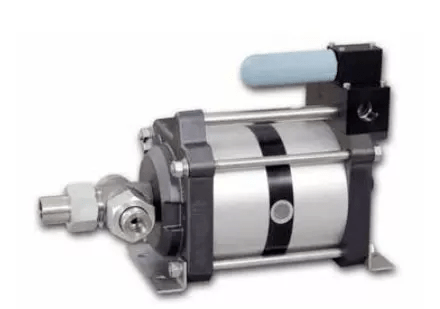

S-Series Liquid Pumps – Pressures From 105 to 14,500 PSI

S Series pumps are designed for oil and oil-water applications. They are particularly useful for static and mobile applications. Available in five pressure ratios, these pumps provide pressures ranging from 105 to 14,500 PSI.

Request for Quote Know More

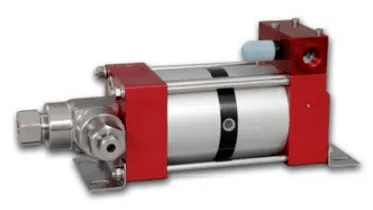

S-D Series Liquid Pumps – Pressures From 105 to 14,500 PSI

Pumps in this series are the double-acting version of the S Series products. The S-D Series pneumatic driven pumps can also be used in static and mobile applications. However, they provide five pressure ratio options, ranging from 105 to 14,500 PSI.

Request for Quote Know More

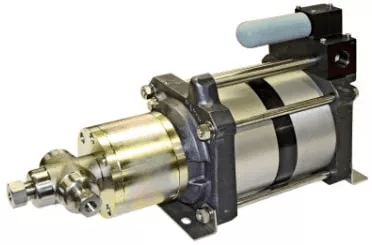

GX Series

The GX Series pumps are high flow products and provide pressures ranging from 540 to 14,500 PSI. They are the perfect choice for offshore applications, or where pump installation needs to be durable.

Request for Quote Know More

L-Series Liquid Pumps – Pressures From 165 to 60,000 PSI

These liquid pumps are capable of providing pressures between 165 and 60,000 PSI. Maximator L Series pumps are constructed with stainless steel bodies. They can be provided in single and double acting models.

Request for Quote Know More

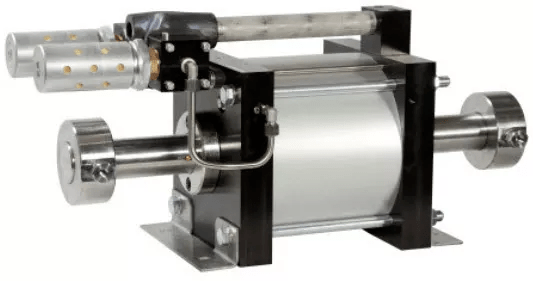

L-D Series High Pressure Pumps

Maximator L-D series are double-acting pumps are designed for water or oil services. The L-D pumps dual inlet and dual outlet ports are deliver 50% more flow rate than the L series pumps with less pulsation. These pumps are available in various pressure ratios from 150 to 38,425 PSI.

Request for Quote Know More

LSF-Series Liquid Pumps – Pressures From 165 to 23,200 PSI

Designed for chemical applications, the LSF Series pumps provide pressures ranging from 165 to 23,200 PSI. These air driven high-pressure liquid pumps are available in single acting models and can be provided with either a single or a double air drive head.

Request for Quote Know More

PPSF Series

Similar to the LSF series, the PPSF pumps are designed to assist chemical applications at pressures from 60 to 14,500 PSI. The single-acting pumps are provided with single and double air drive heads. A distance piece is used to separate the air drive and liquid sections.

Request for Quote Know More

At High Pressure Tech, we offer a variety of Maximator air driven pumps to meet specific application requirements. Our liquid pump category consists of more than 20 different types of pumps, and pump series. Given below are some of the popular products that we offer.

PP Series: The PP Series pumps are lightweight and feature a rugged construction of anodized aluminum bodies. These air driven liquid pumps are capable of increasing pressures from 60 to 58,000 psi.

PPO Series: These pumps are specifically designed for applications comprising oil, or a combination of oil and water. The PPO pumps are known for their immense power and portability. They are also versatile, providing 8 pressure ratio options.

S Series: S Series pumps are designed for oil and oil-water applications. They are particularly useful for static and mobile applications. Available in five pressure ratios, these pumps provide pressures ranging from 105 to 14,500 PSI.

S-D Series: Pumps in this series are the double-acting version of the S Series products. The S-D Series pneumatic driven pumps can also be used in static and mobile applications. However, they provide five pressure ratio options, ranging from 105 to 14,500 PSI.

GX Series: The GX Series pumps are high flow products and provide pressures ranging from 540 to 14,500 PSI. They are the perfect choice for offshore applications, or where pump installation needs to be durable.

L Series: These liquid pumps are capable of providing pressures between 165 and 60,000 PSI. Maximator L Series pumps are constructed with stainless steel bodies. They can be provided in single and double acting models.

L-D Series: Maximator L-D series are double-acting pumps are designed for water or oil services. The L-D pumps dual inlet and dual outlet ports are deliver 50% more flow rate than the L series pumps with less pulsation. These pumps are available in various pressure ratios from 150 to 38,425 PSI.

LSF Series: Designed for chemical applications, the LSF Series pumps provide pressures ranging from 165 to 23,200 PSI. These air driven high-pressure liquid pumps are available in single acting models and can be provided with either a single or a double air drive head.

PPSF Series: Similar to the LSF series, the PPSF pumps are designed to assist chemical applications at pressures from 60 to 14,500 PSI. The single-acting pumps are provided with single and double air drive heads. A distance piece is used to separate the air drive and liquid sections.

PP-HL Series: This series comprises lightweight, and hand-operated pumps. They provide pressures up to 31,900 PSI. The PP-HL pumps have the capability to generate pressure even when there is no pressure available. They are ideal for pressure gauges and transducers.

GPD Series: The GPD Series liquid pumps are designed for applications, which require fast liquid filling. These double-acting pumps with single heads provide high discharge flows at high pressures. GPD pumps can handle water, chemicals, and hydraulic oils.

Water / Oil Service Air Driven Pumps
Type (Water/Oil)	Model	Ratio	Max. Presure	Displacement Cycle (cu. in.)
Small Displacement	PP4	1:4	580 psi	1.86
	PP8	1:9	1,305 psi	0.90
	PP12	1:14	2,030 psi	0.57
	PP22	1:28	4,060 psi	0.28
	PP37	1:46	6,670 psi	0.17
	PP72	1:86	12,470 psi	0.09
	PP111	1:130	15,000 psi	0.06
	PP189	1:220	31,900 psi	0.04
Small Displacement – Hand Lever	PP22-HL	1:28	4,060 psi	0.28
	PP37-HL	1:46	6,670 psi	0.17
	PP72-HL	1:86	12,470 psi	0.09
	PP111-HL	1:130	15,000 psi	0.06
	PP189-HL	1:220	31,900 psi	0.04
Small Displacement – Double Air Head	PP111-2	1:260	36,250 psi	0.06
Small Displacement – Double Air Head	PP189-2	1:440	60,000 psi	0.04
Small Displacement – Triple Air Head	PP111-3	1:390	36,250 psi	0.06
Small Displacement – Triple Air Head	PP189-3	1:660	60,000 psi	0.04
Medium Displacement	S15	1:17	2,465 psi	1.74
	S25	1:25	3,625 psi	1.20
	S35	1:39	5,655 psi	0.77
	S60	1:61	8,845 psi	0.49
	S100	1:108	14,500 psi	0.27
	S150	1:156	14,500 psi	0.19
Medium Displacement – Double Acting	S15-D	1:16	2,320	3.45
	S25-D	1:24	3,480	2.39
	S35-D	1:38	5,510	1.54
	S60-D	1:60	8,700	0.98
	S100-D	1:107	14,500	0.55
	S250-D	1:250	15,000	0.24
High Displacement	L10-VE	1:11	1,595 psi	5.49
	L15-VE	1:16	2,320 psi	3.78
	L25-VE	1:28	4,060 psi	2.15
	L35-VE	1:40	5,800 psi	1.49
	L60-VE	1:63	9,135 psi	0.94
	L100-VE	1:113	15,000 psi	0.54
	L150-VE	1:151	21,025 psi	0.40
	L250-VE	1:265	38,425 psi	0.23
	L300-VE	1:314	45,530 psi	0.20
	L400-VE	1:398	57,710 psi	0.15
	L500-VE	1:592	60,000 psi	0.12
High Displacement – Double Air Head	L10-2-VE	1:22	3,190 psi	5.49
	L15-2-VE	1:32	4,640 psi	3.78
	L25-2-VE	1:56	8,120 psi	2.15
	L35-2-VE	1:80	11,600 psi	1.49
	L60-2-VE	1:126	15,000 psi	0.94
	L100-2-VE	1:226	30,450 psi	0.54
	L150-2-VE	1:300	42,050 psi	0.40
	L250-2-VE	1:530	60,000 psi	0.23
	L300-2-VE	1:628	60,000 psi	0.20
	L400-2-VE	1:796	60,000 psi	0.15
	L500-2-VE	1:1038	60,000 psi	0.09
High Displacement – Double Acting	L10D-VE	1:10	1,450 psi	10.98
	L15D-VE	1:15	2,175 psi	7.59
	L25D-VE	1:27	9,915 psi	4.31
	L35D-VE	1:40	5,800 psi	2.98
	L60D-VE	1:63	9,135 psi	1.92
	L100D-VE	1:113	15,225 psi	1.07
	L150D-VE	1:151	21,025 psi	0.80
	L250D-VE	1:265	38,425 psi	0.46
High Volume – Water/Oil Service	GX35	1:36	5,220 psi	6.71
	GX60	1:66	8,700 psi	3.97
	GX100	1:117	15,225 psi	2.20
	GX170	1:177	15,225 psi	2.20
Very High Volume – Water/Oil Service	GPD-30	1:30	4,350 psi	31.00
	GPD-60	1:60	8,700 psi	15.70
	GPD-120	1:129	18,700 psi	11.20
	GPD-180	1:192	27,850 psi	0.26
	GPD-260	1:277	40,175 psi	0.17
Very High Volume – Double Air Head – Water/Oil Service	GPD-30-2	1:60	8,700 psi	31.00
	GPD-60-2	1:120	17,400 psi	15.70
	GPD-120-2	1:258	37,400 psi	7.40
	GPD-180-2	1:384	43,500 psi	4.20
	GPD-260-2	1:554	43,500 psi	2.90

Oil / Oil Water Service Air Driven Pumps
Small Displacement	PPO4	1:4	580 psi	1.86
	PPO8	1:9	1,305 psi	0.90
	PPO12	1:14	2,030 psi	0.57
	PPO22	1:29	4,205 psi	0.28
	PPO37	1:47	6,815 psi	0.17
	PPO72	1:88	12,760 psi	0.09
	PPO111	1:133	14,500 psi	0.06
	PPO189	1:225	14,500 psi	0.04

Chemical Service Air Driven Pumps
Low Displacement	PPSF4	1:4	580 psi	1.86
	PPSF8	1:9	1,305 psi	0.90
	PPSF12	1:14	2,030 psi	0.57
	PPSF22	1:28	4,060 psi	0.28
	PPSF37	1:46	6,670 psi	0.17
	PSF72	1:86	12,470 psi	0.09
	PPSF111	1:130	14,500 psi	0.06
High Displacement	LSF10	1:11	1,595 psi	5.49
	LSF15	1:16	2,320 psi	3.78
	LSF25	1:28	4,060 psi	2.15
	LSF35	1:40	5,800 psi	1.49
	LSF60	1:63	9,135 psi	0.94
	LSF100	1:113	15,225 psi	0.54
	LSF150	1:151	21,025 psi	0.40
	LSF250	1:265	33,200 psi	0.23
High Displacement – Double Air Head	LSF10-2-VE	1:20	3,190 psi	5.49
	LSF15-2-VE	1:30	4,640 psi	3.78
	LSF25-2-VE	1:54	8,120 psi	2.15
	LSF35-2-VE	1:78	11,600 psi	1.49
	LSF60-2-VE	1:118	15,000 psi	0.94
	LSF100-2-VE	1:200	23,200 psi	0.54

Construction and Operations

The operation of high pressure liquid pumps is based on the principle of an oscillating pressure intensifier. In simple terms, the principle states that pumping can continue even if the pressure reduces. The pumps function using compressed air ranging from 1 to 10 bar. This allows the pump to continue its operation despite any pressure drops.

The construction of Maximator pumps is designed to support the oscillating pressure principle. They feature the following components:

Drive piston
Suction chamber
Air piston joint
Diameter plunger
Inlet check valve
Outlet check valve

The air piston joint is connected to the small diameter plunger. The pressure ratio is the key to determining the maximum outlet pressure. Higher outlet pressures can be gained by simply increasing the pressure ratios.

The pumps are self-priming, and generally, do not require the use of airline lubricator. The liquid flows into the suction chamber due to the upstroke of the drive piston. This suction effect causes the inlet check valve to open, while and the outlet check valve is closed. Down-stroke generates the required pressure for an application. The generated pressure causes the inlet check valve to close, and the outlet check valve to open. The pressure is then transferred to the application equipment.

Maximator pneumatic liquid pumps consist of automatic cycles. The cycles slow down when there is a build-up of pressure. Once the output pressure forces are equalized, the pump stops automatically. The pump restarts if there is an increase in the air drive pressure, or a slight drop in.

Maximator high pressure pumps can provide a variety of benefits to technical applications in various industries.

The pressure can be regulated by using one of two components – manual pressure control units, or pneumatically triggered valves.
The pneumatic liquid pumps are extremely appropriate for application in explosion-proof areas.
Substitution of leakages by automatic additional delivery of liquid from the pump
The pump does not consume excess energy even when it is maintaining the requisite pressure for long periods of time.
No heat loss takes place during the pressure holding stage.
The high pressure liquid pumps provide ease of installation and quiet operation.
The pump is self-contained. The product only requires connections for the suction, pressure lines, and air supply.

Maximator high efficiency pumps are ideal for a broad variety of oil, water and chemical applications.

Chemical and Offshore Applications

Coolant injection
Underground mining
Concrete restoration
Intermittent waterjet cutting
Rock and coal consolidation
Tunnel and bridge construction
Chemical fluid transfer and pressurization
Inhibitor injection of methanol and glycol in oil wells
Test pressure generation for mandrel extraction machines
Brake fluid, skydrol, transmission fluid and power steering fluid for airplanes and automobiles.

Oil Service Pumps

Lubrication systems
Lifting and Jacking:
- Lifting tables
- Beam jacking
- Aircraft jacking
- Scissor jack lifts
Hydraulic Operations:
- Chucks
- Punches
- Pin presses
- Valve actuation
- Clamping devices
Presses:
- Filter presses
- Hydraulic presses
- Cold isostatic presses
- Hydraulic press actuation
Tooling and Tightening:
- Crimping
- Cable shears
- Roller tensioning
- Torque wrenches
- Pipe bending tools
- Actuating cropping
Testing:
- Pressure testing
- Tensile test machines

Tips and Warning

The following tips and warnings can help ensure durable operation and performance of Maximator air driven liquid pumps.

The pump’s outlet pressure can be set easily via an air regulator.
The model numbers of each pump reflect the nominal pressure ratios, while the technical data indicates the exact ratios.
In an application, the minimum liquid pressure can be calculated by multiplying the pressure ratio with the available shop air pressure.
The performance of the pneumatic liquid pump can be affected by a number of conditions. These include dirty filters, deficient inlet sizes, and freezing of the pilot valves.
