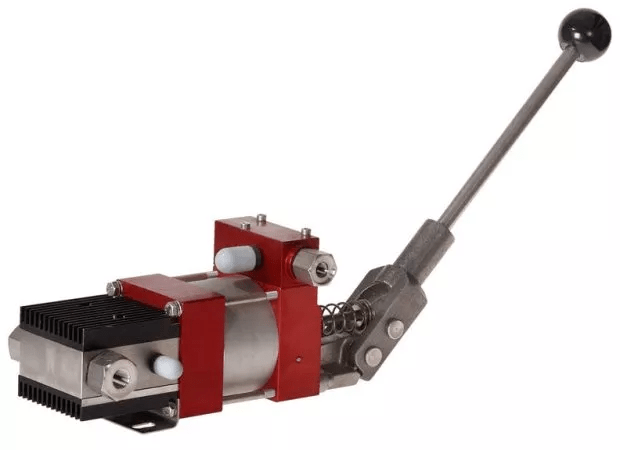

The Maximator ROB rebreather oxygen gas booster is specifically designed for use in the sports recreational diving field. This compact compressed air or hand has driven oxygen gas booster provides a rugged and reliable means of recharging rebreather size tanks. ROB Boosters are Lightweight and portable Ideal for installing in a Pelican Case; Incorporate a Finned Gas Barrel for efficient gas cooling; Oxygen Cleaned; Can be driven from either compressed air or from air/nitrogen bottle supply.
Request for Quote Technical Data Air Drive Pressure: 1-10 bar / 14.5 – 145 psi Max. Outlet Pressure: 280 bar/ 4,060 psi Pressure Ratio: 1:28 Displacement Volume/Double Stroke: 4.6 cm³/ 0.28 cu.inch Inlet Connection: 1/4″ NPT Outlet Connection: 1/4″ NPT Air Drive Connection: 3/8″ NPT Maximum Operating Tempreature: 60°C Net Weight: Approx. 3.7 kg (4.7 …
Request for Quote Know More
Request for Quote Technical Data Air Drive Pressure: 1-10 bar / 14.5 – 145 psi Max. Outlet Pressure: 300 bar / 4,350 psi Pressure Ratio: 1:8 / 1:37 Displacement Volume/Double Stroke: 21.6 cm³/ 1.3 cu.inch Inlet Connection: 1/4″ NPT Outlet Connection: 1/4″ NPT Air Drive: 3/8″ NPT Maximum Operating Tempreature: 60°C Net Weight: Approx. 7 …
Request for Quote Know More
Request for Quote Technical Data Air Drive Pressure pL: 1-10 bar / 14.5 – 145 psi Pressure Ratio i: 1:20 Compression Ratio: 1:20 Minimum Suction Pressure pA: 10 bar Maximum Suction Pressure pA: 200 bar Maximum Outlet Pressure pB: 200 bar Displacement Volume: 60 cm³/ 3.6 cu.inch Maximum Cycles: 150 / min Stall Pressure: PB …
Request for Quote Know More
Request for Quote Technical Data Air Drive Pressure: 1-10 bar / 14.5 – 145 psi Max. Outlet Pressure: 300 bar / 4,350 psi Pressure Ratio: 1:32 Displacement Volume/Double Stroke: 11.6 cm³/ 0.7 cu.inch Inlet Connection: 1/4″ NPT Outlet Connection: 1/4″ NPT Air Drive: 3/8″ NPT Maximum Operating Tempreature: 60°C Net Weight: Approx. 5.4 kg Inlet …
Request for Quote Know More| Model | Ratio | Supply Pressure | Outlet Pressure | Stall Pressure | Displacement Per Cycle |
||
| Minimum | Maximum | ||||||
| ROB-22 | 28:1 | 725 psi | 4,060 psi | 4,060 psi | 28Pa | 0.28 cu in | |
| ROB-32D | 32:1 | 725 psi | 4,350 psi | 4,350 psi | 32Pa + Ps | 0.70 cu in | |
| ROB-8-37 | 8:1 / 37:1 | 145 psi | 290 psi | 4,350 psi | 37Pa | 1.30 cu in | |
| SDLE-20-1 | 20:1 | 145 psi | 4,350 psi | 4,350 psi | 20Pa | 3.6 cu in | |
